Prime^x 41 Specs

Primex41 Grid

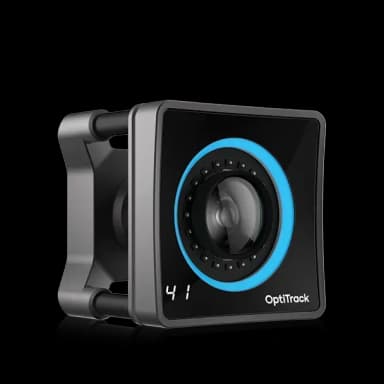

Primex41w Grid

Prime^x 41

Prime^x 41W

Documents

Quick Start Guide	Download document	Download document
Spec Sheet	Download document	Download document

Image Sensor

Resolution	2048 x 2048	2048 x 2048
Native Frame Rate	180 Hz	180 Hz
Latency	5.5 ms	5.5 ms

Tracking Performance & Range¹

3D Accuracy	+/- 0.1 mm	+/- 0.3 mm
Active Distance	45 m	30 m
Passive Distance	30 m	21 m

Filter & Lens

Filter Switcher
Adjustable Focus
Adjustable F-Stop
Stock Lens	C-Mount 11.8mm f/1.8 Lens	C-Mount 8.9mm f/1.8 Lens
Optional Lens

Global Shutter

Default Speed	0.25 ms	0.25 ms
Minimum Speed	0.01 ms	0.01 ms
Maximum Speed	4 ms	4 ms

Image Processing

Object
Raw Grayscale
MJPEG Grayscale
Duplex Mode
Primex 120 Full Resolution MJPEG
Segment

Connections

Data Port	GigE	GigE
Camera Sync Port	Ethernet	Ethernet
Power Port	PoE or PoE+ power2	PoE or PoE+1

LED Ring

Number of LEDs	20	20
LED Wavelength	850 nm IR	850 nm IR
LED Output	High Power	Wide High Power

Size & Weight

Width	4.96 in	4.96 in
Height	4.96 in	4.96 in
Depth	5.9 in	5.9 in
Weight	3 lbs	3 lbs

Camera Body

Material	Aluminum & Polycarbonate	Aluminum & Polycarbonate
Mount Type	1/4-20 tripod thread (x2)	1/4-20 tripod thread (x2)
Status Indicator Type	2 digit numeric LEDs status indicators	2 digit numeric LEDs status indicators
LED Activity Type	Full-color LED	Full-color LED
